Isle Of Man Pillboxes


No Pillboxes have been recorded by the Defence of Britain Project.

The NGRs are from Isle of Man Government Survey.

 RAF Jurby

RAF Jurby – Existing Pillboxes

22(L)/SC3600297864/RAF Jurby/Site of C Flight Dispersal

22(S)/SC3680198226/RAF Jurby/Site of B Flight Dispersal

22/SC3537798955/RAF Jurby/Site of D Flight Dispersal

22(S)/SC3690698958/RAF Jurby/Site of A Flight Dispersal

22/SC3639597959/RAF Jurby/Site of B Flight Dispersal

22/SC3563997839/RAF Jurby/Site of C Flight Dispersal

22(L)/SC3558198299/RAF Jurby/SW Airfield Defence

22/SC3660299412/RAF Jurby/To north of the Married Patch

22(S)/SC35045798419/RAF Jurby/To Suth of Jurby Church D Flight Dispersal

RAF Jurby – Demolished Pillboxes

Believed 22/SC3705598785/RAF Jurby/Removed when main runway was extended

 RAF Andreas

RAF Andreas – Known Pillboxes

Unknown/NX4230500486/RAF Andreas/near Braust Farm

Unknown/NX4344100210/RAF Andreas/to SW of West Kimmeragh Farm(End of Runway)

Unknown/NX4345900173/RAF Andreas/to SW of West Kimmeragh Farm(End of Runway)

RAF Andreas – Other Pillboxes Approximate Location

Unknown/SC4240199412/RAF Andreas/Between Southern intersection of Runways 24 & 36-18

Unknown/SC4245099365/RAF Andreas/Between Southern intersection of Runways 24 & 36-18

RAF Scarlett

RAF Scarlett – Known – construction details taken from `20th Century Archaeology` – Part 3 Paul Francis

Unknown/SC2565467716/RAF Scarlett/13ft x 13ft, 18in brick and dry stone wall, concrete roof

Unknown/SC2538767579/RAF Scarlett/16ft 7 x 24ft 3, 18in brick, concrete roof

Unknown/SC2503767410/RAF Scarlett/16ft 7 x 24ft 3, 18in brick, concrete roof

Unknown/SC2495267335/RAF Scarlett/10ft 6 x 16ft,18in brick and dry stone wall, concrete roof

RAF Scarlett – Unknown

Unknown/SC??????????/RAF Scarlett/—–

 RAF Cregneish

RAF Cregneish- construction details taken from20th Century Archaeology – Part 3, RAF Andreas, Paul Francis

Sub Brit: http://www.subbrit.org.uk/sb-sites/sites/i/isle_of_man_radar/index22.shtml

iomrafcregneashplan

Unknown/SC1895167614/RAF Cregneish/Rectangular, 9ft x 11ft 6, 13.5in brick, concrete roof

Unknown/SC1895067540/RAF Cregneish/9 sided, 14ft 6 across flats, stone, brick & concrete

Unknown/SC1902167609/RAF Cregneish/9 sided, 14ft 6 across flats, stone, brick & concrete

Unknown/SC1898667679/RAF Cregneish/10 sided, 14ft 6 across flats, stone, brick & concrete

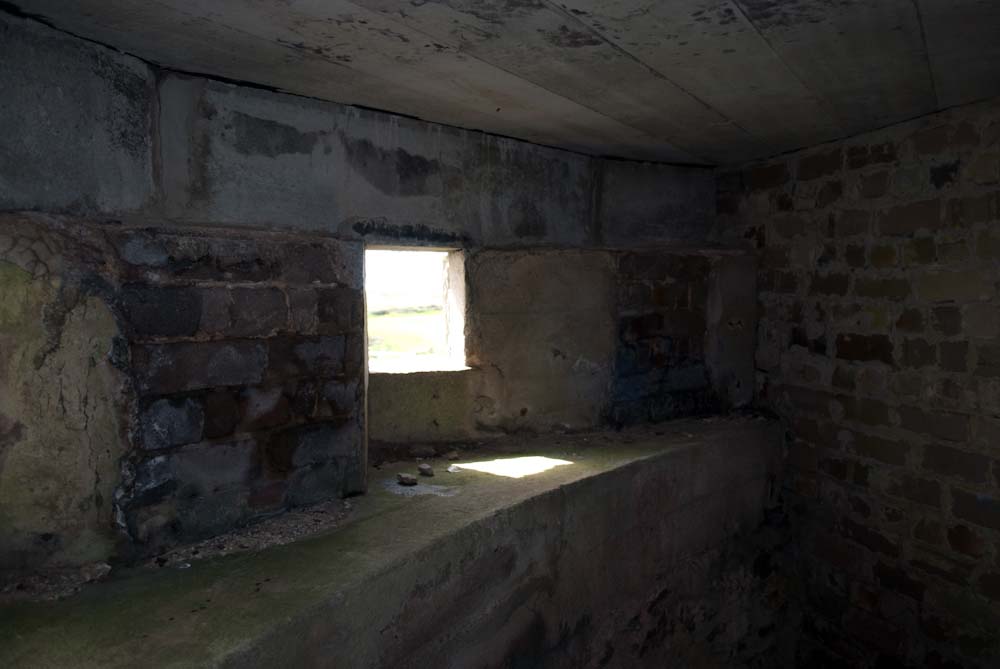

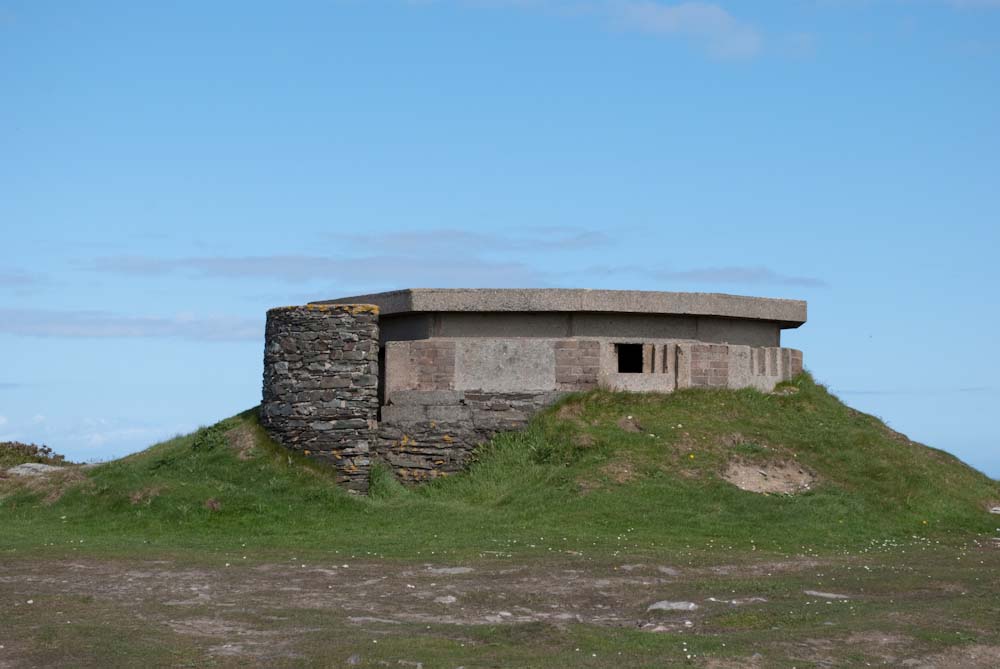

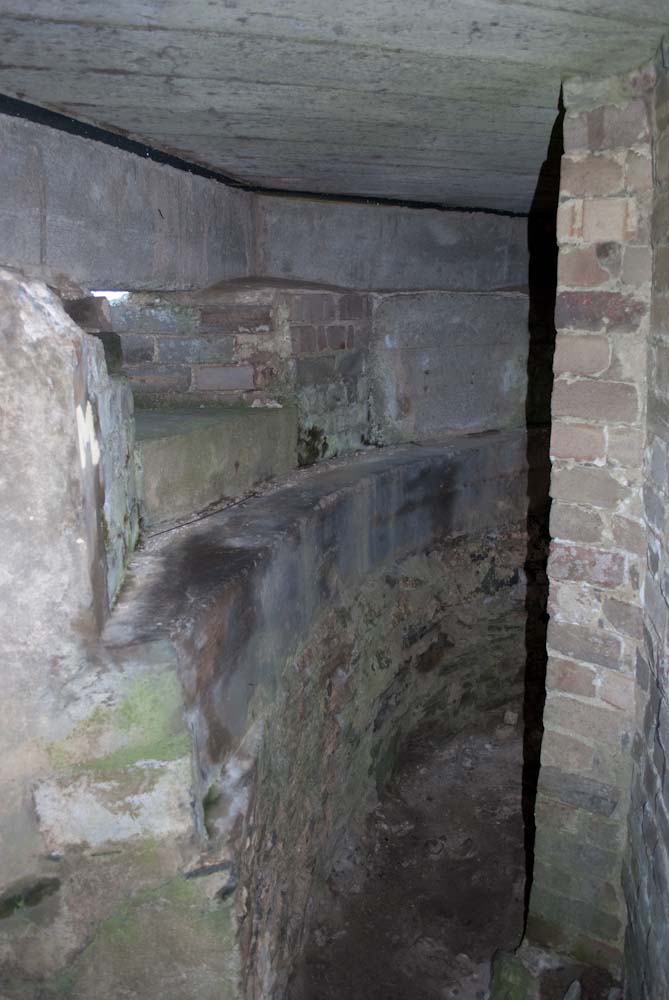

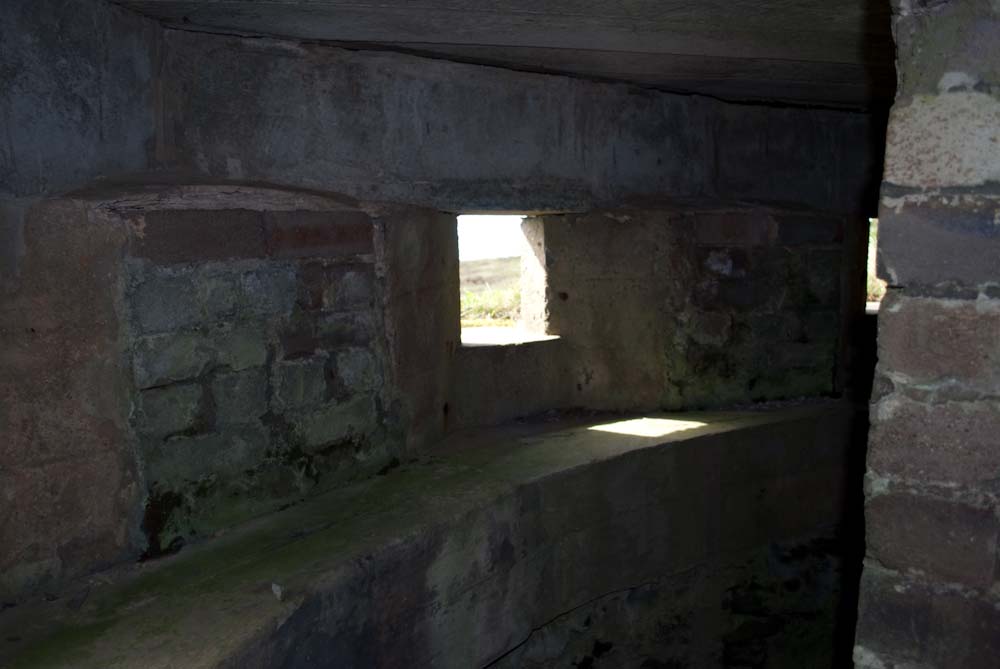

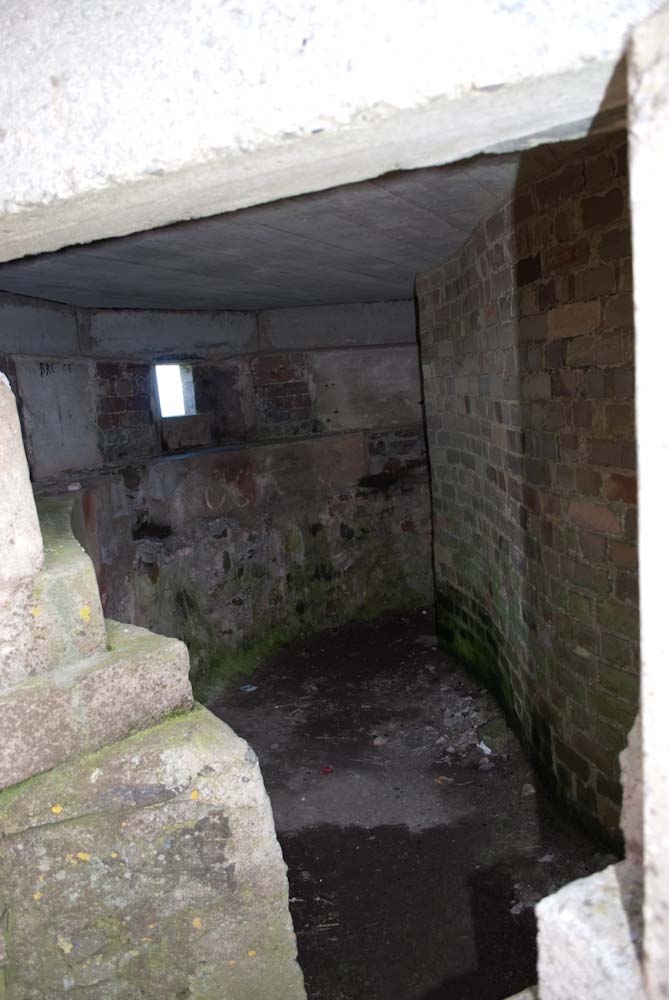

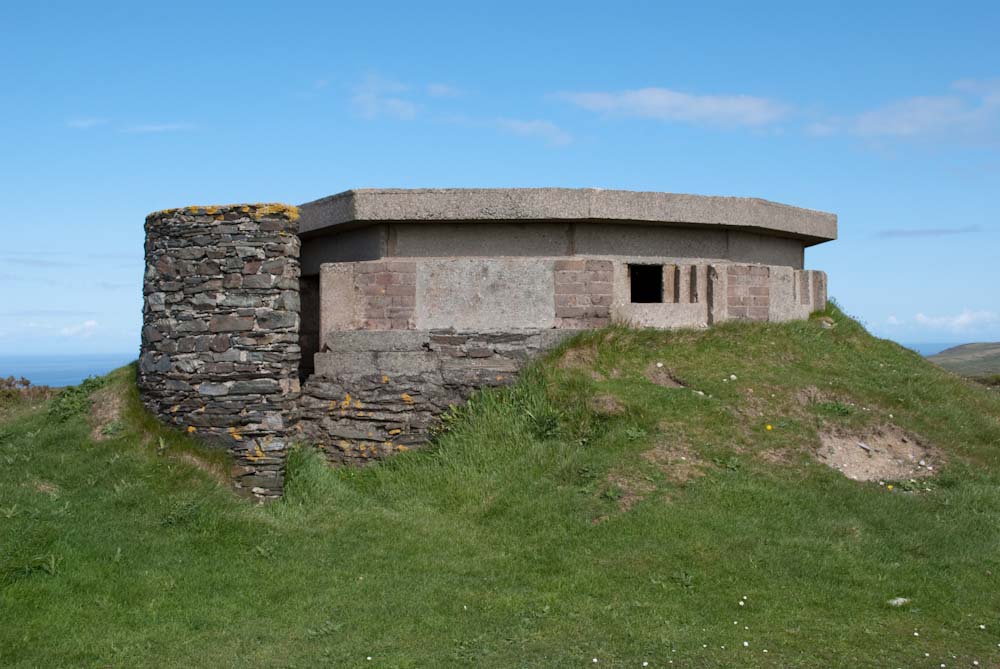

 Pillbox 1

10 sided Pillbox constructed of stone, brick and concrete.

Approx 5m across

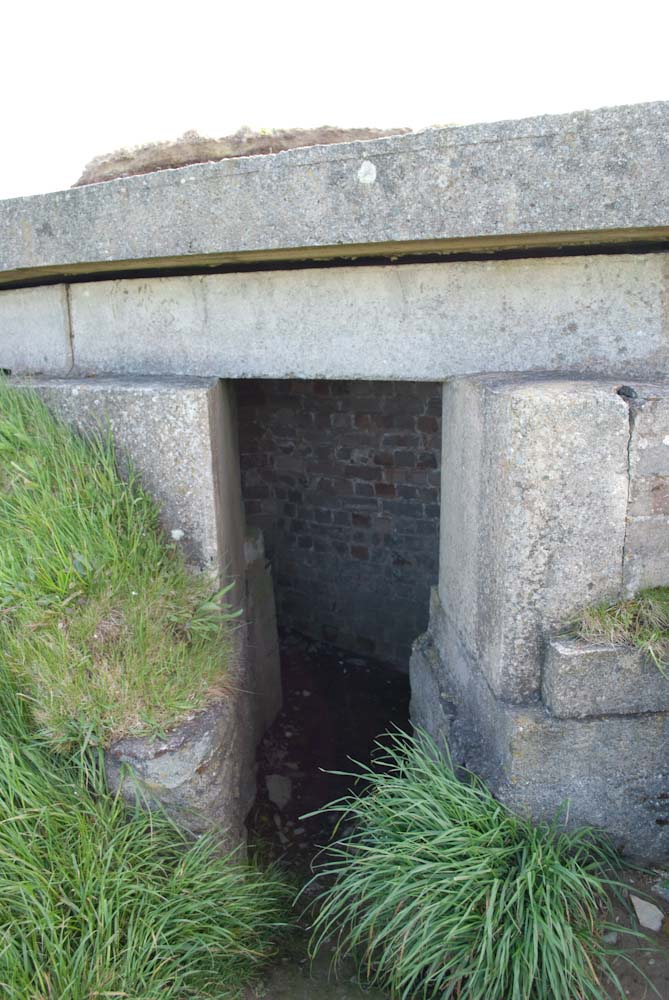

Entrance blast wall of local stone

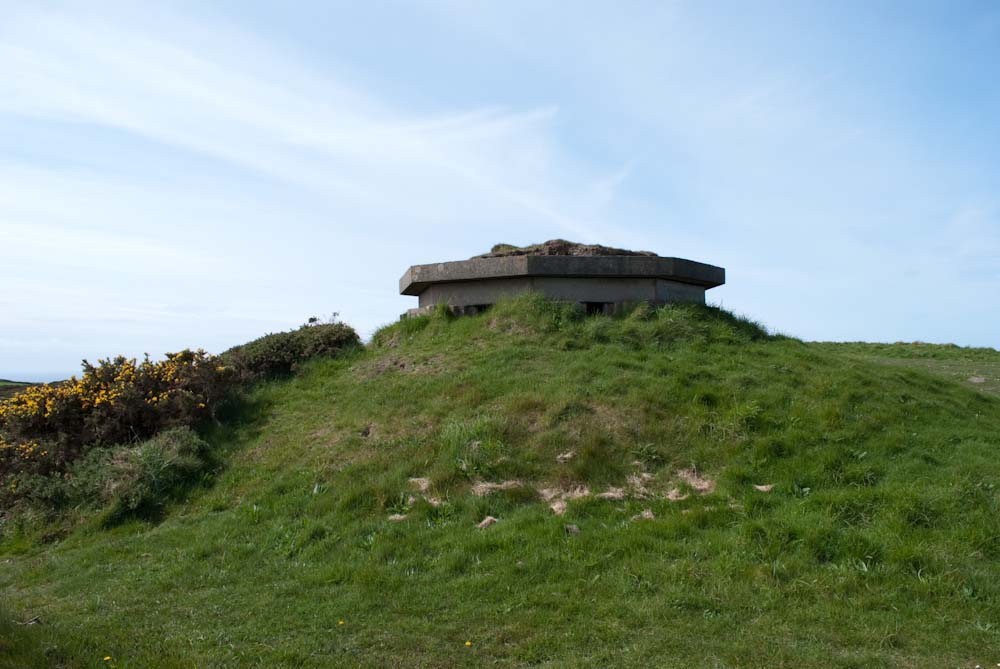

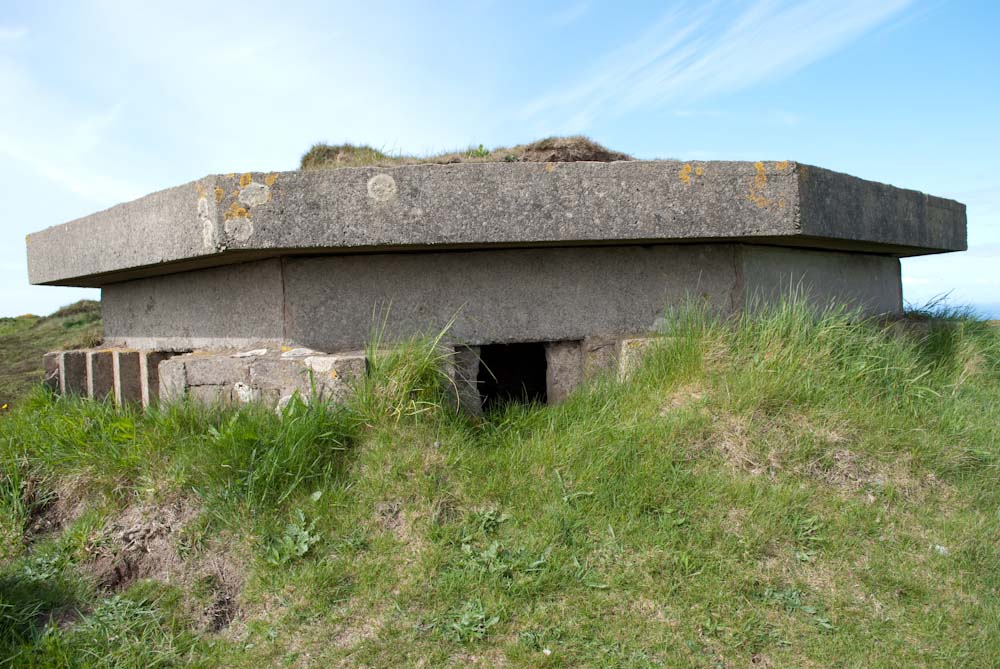

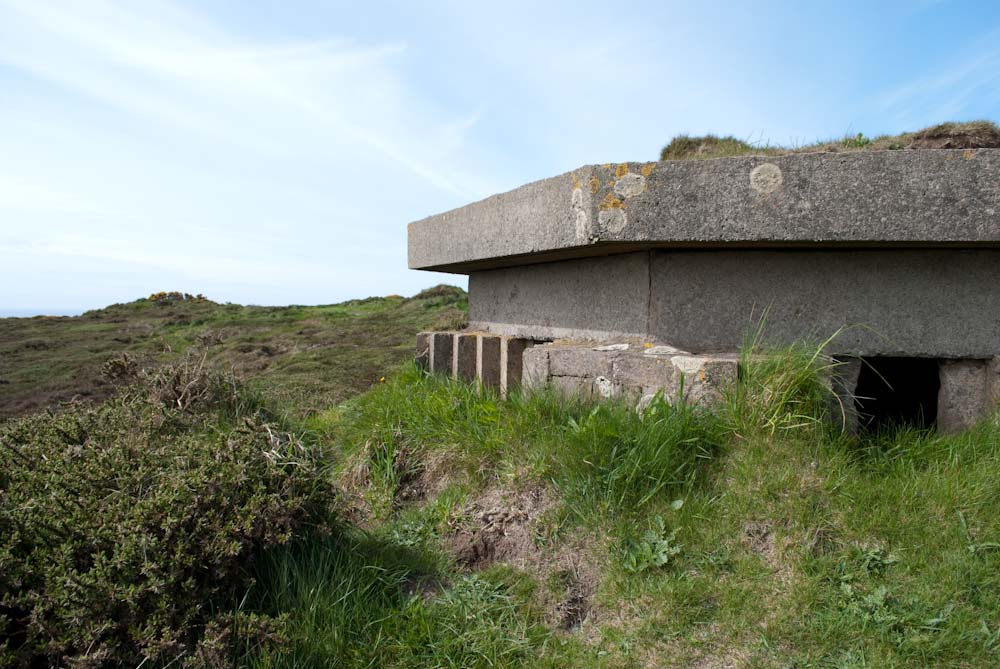

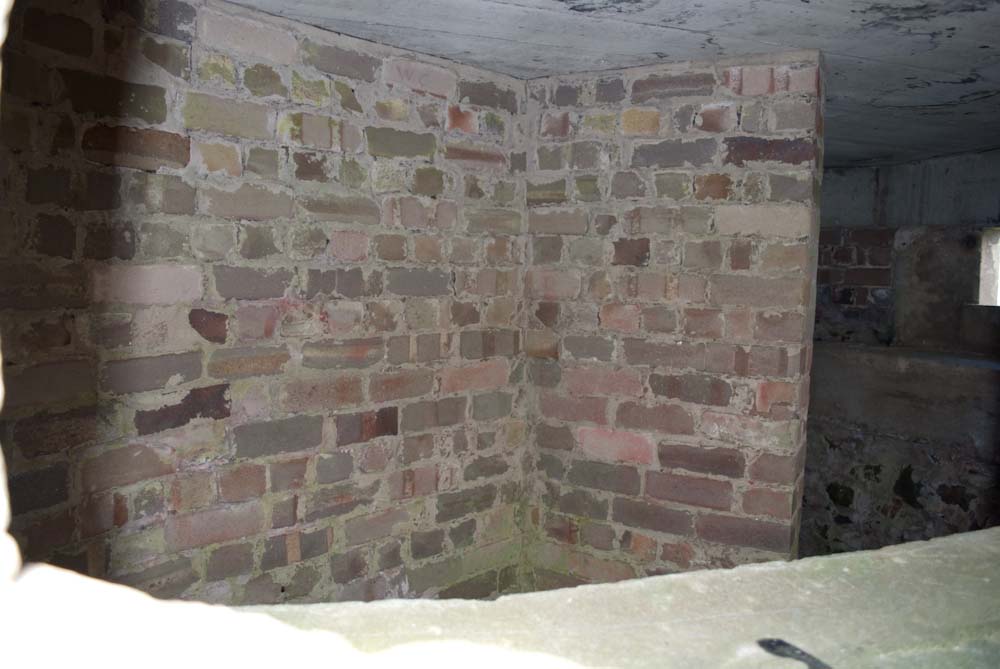

Pillbox 2

9 Sided Pillbox constructed of stone, brick and concrete

Approx 5m across

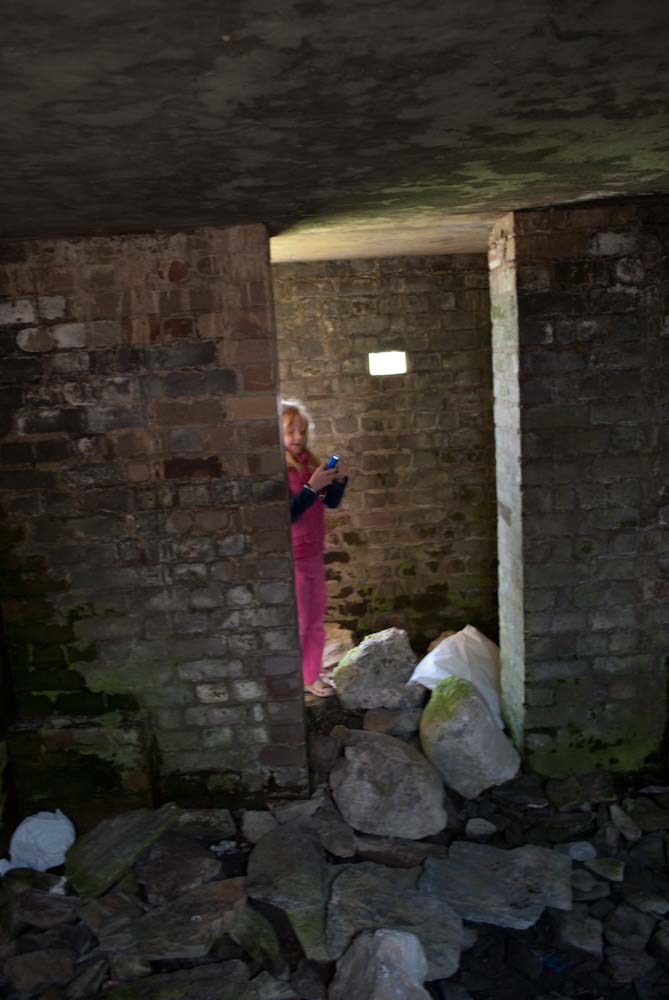

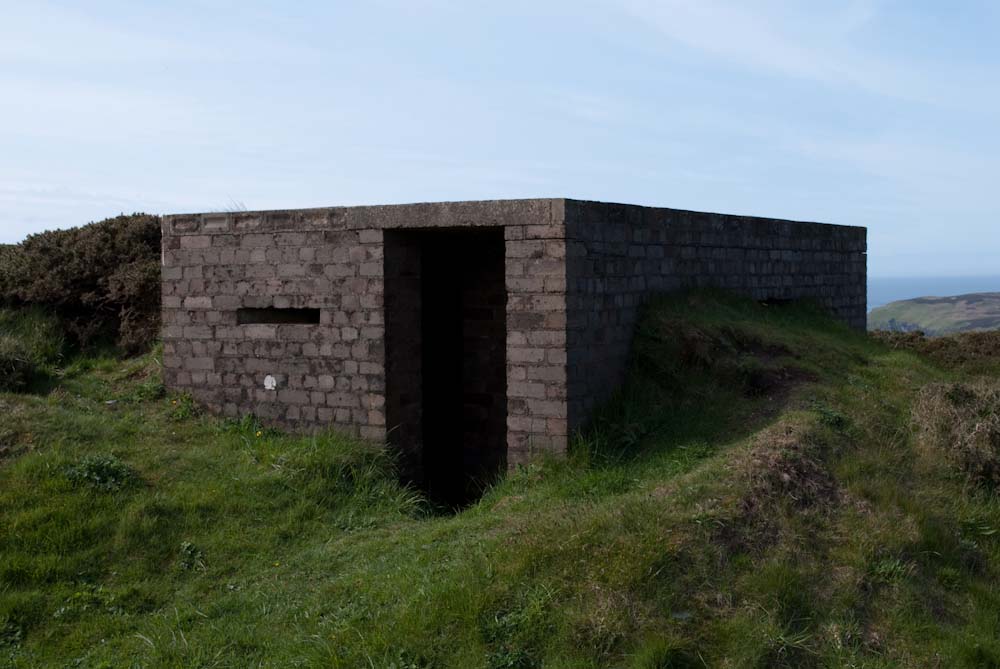

 Guard Post

Rectangular building of 35cm brick construction.

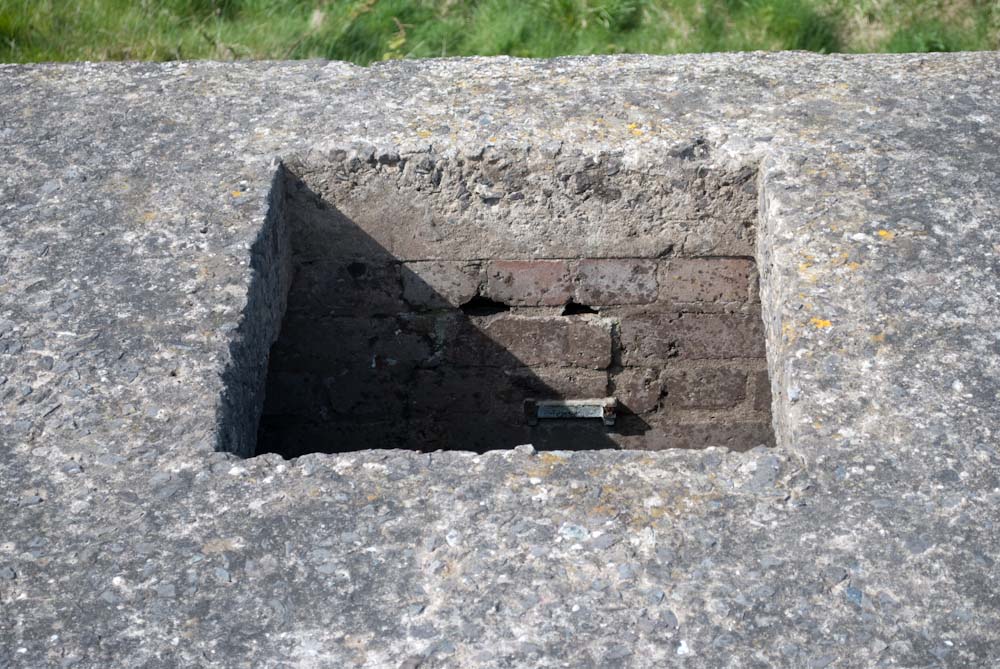

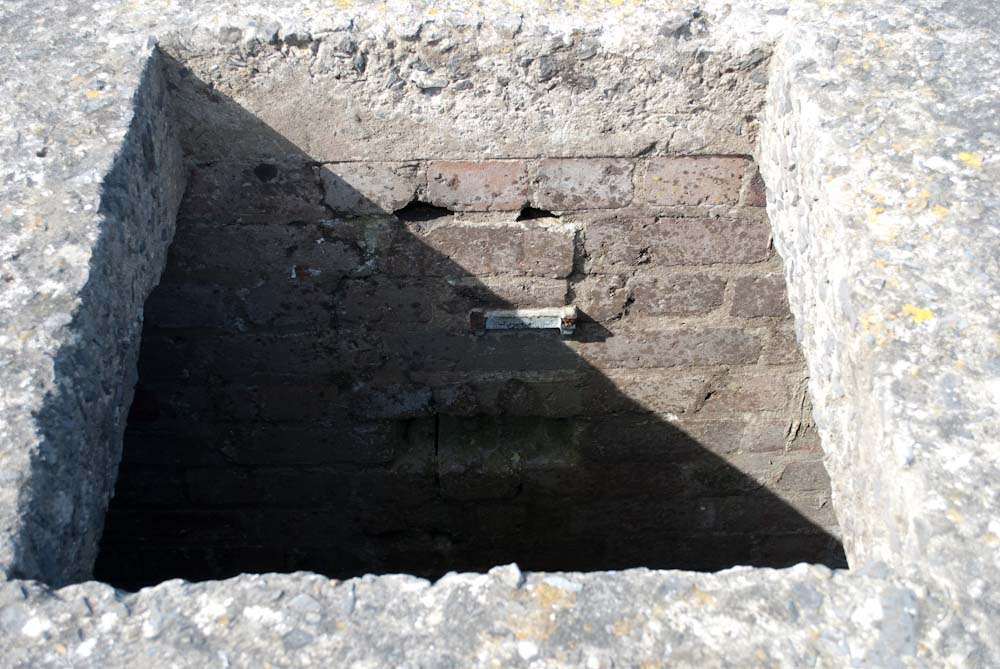

Approx 3m x 4m, observation hatch in roof.

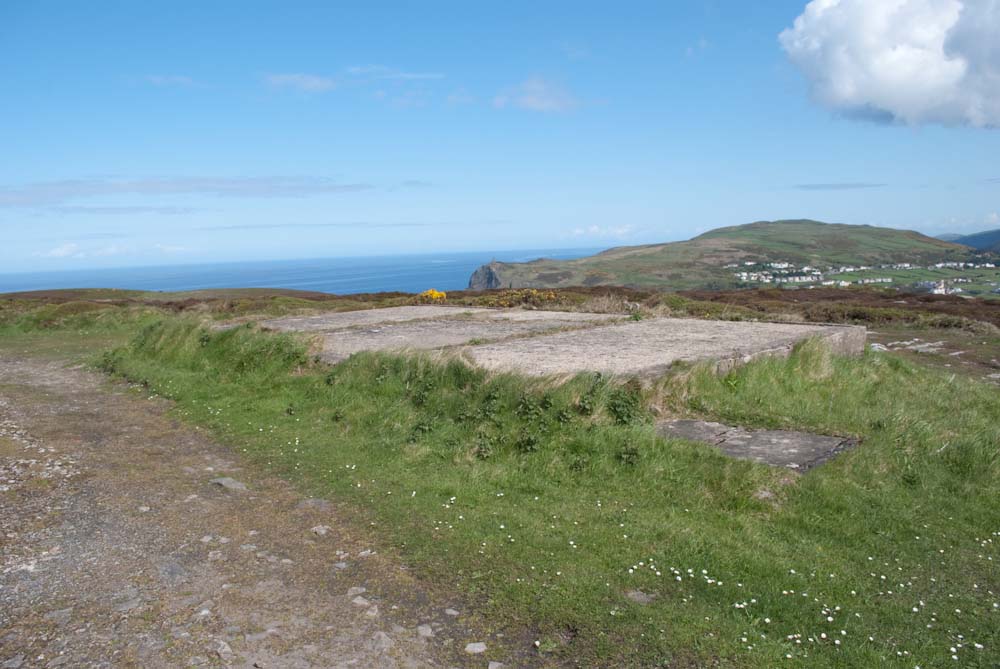

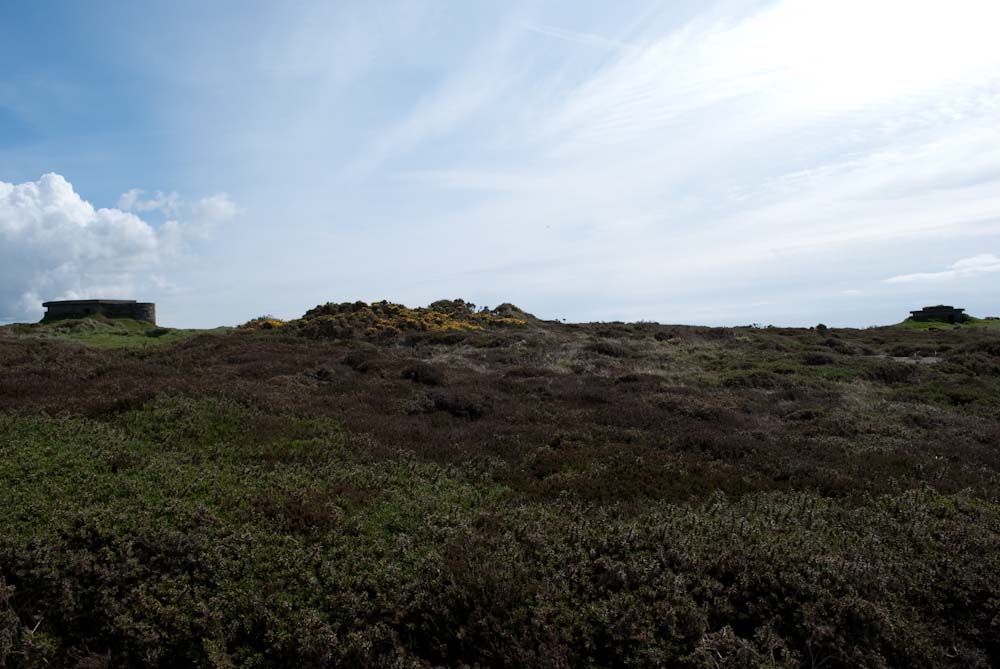

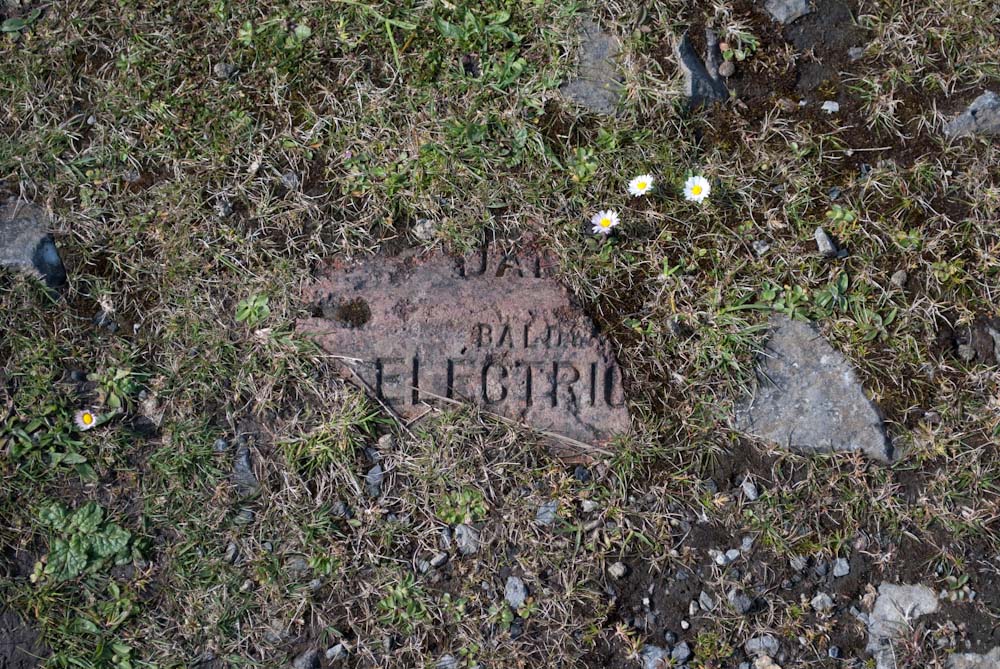

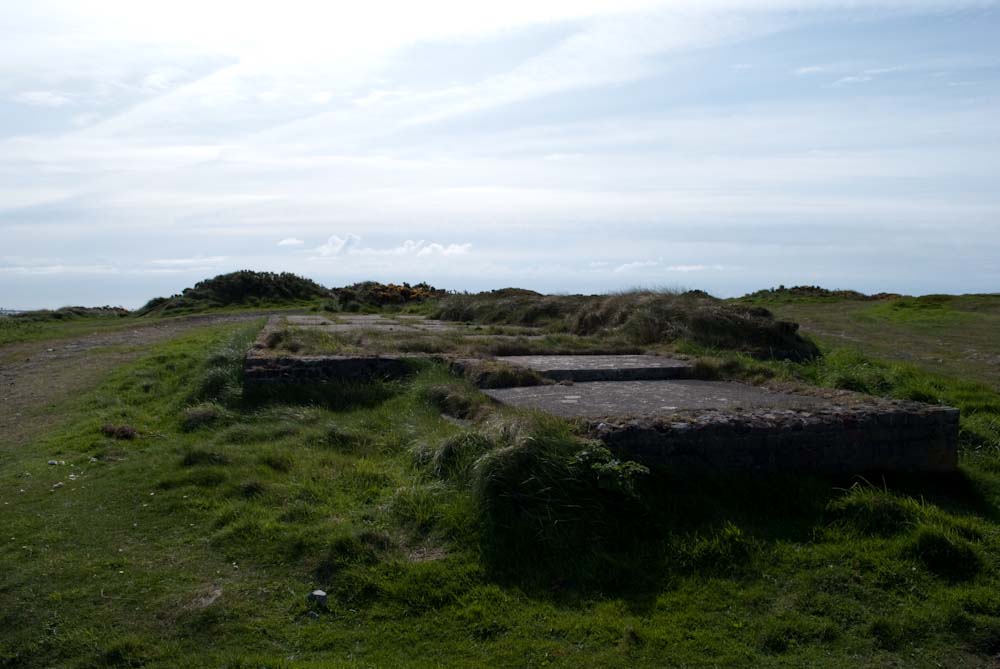

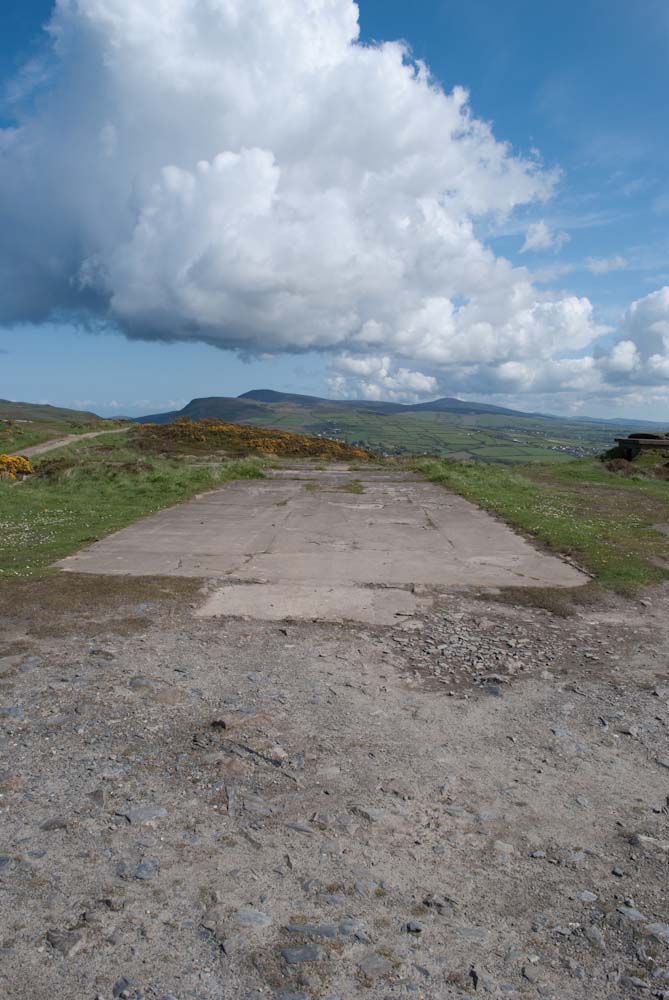

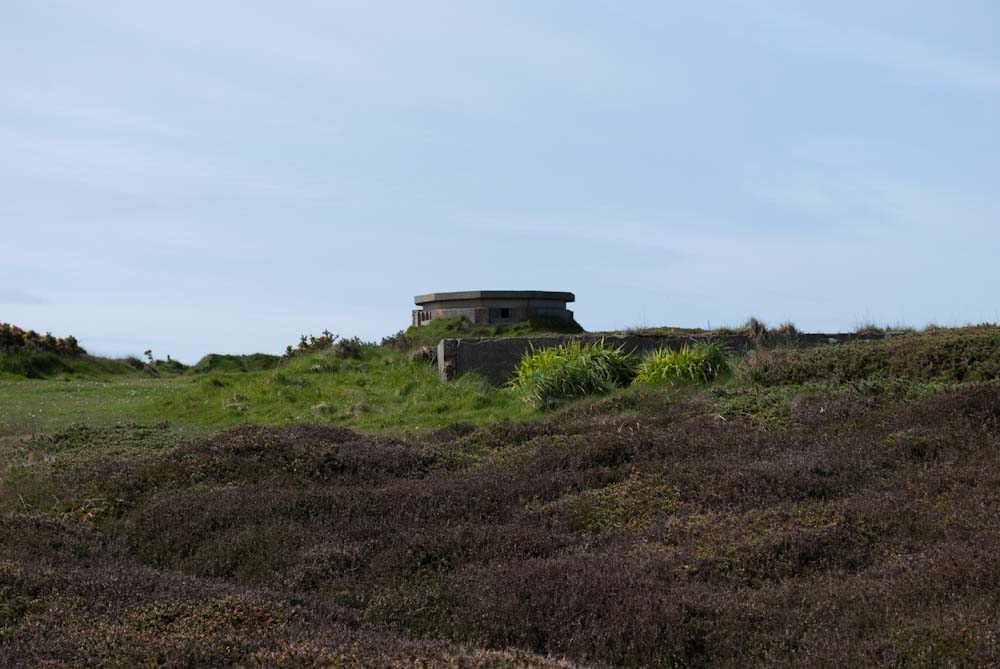

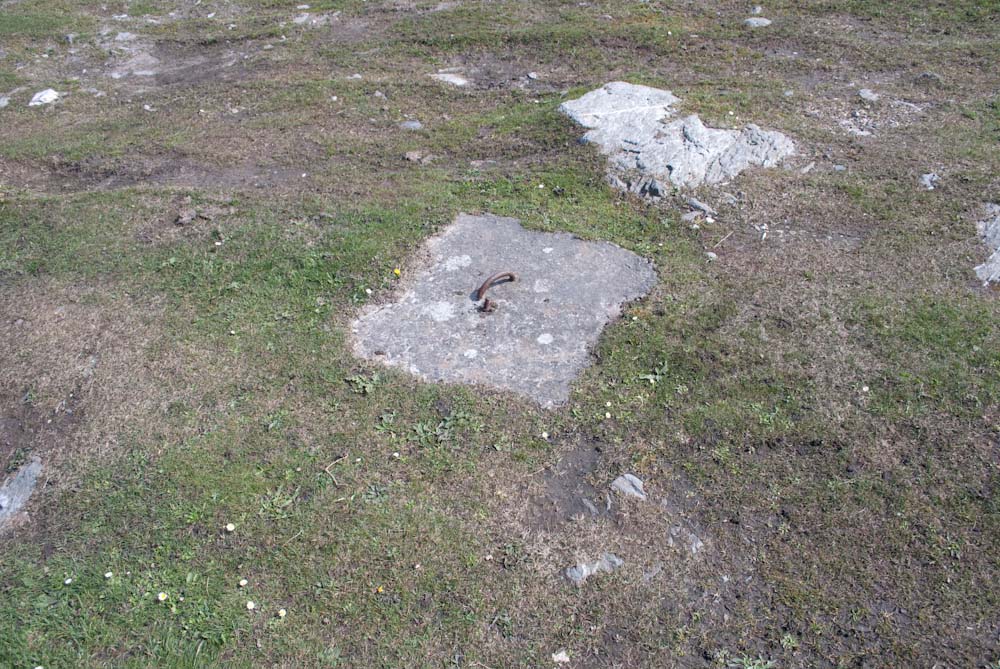

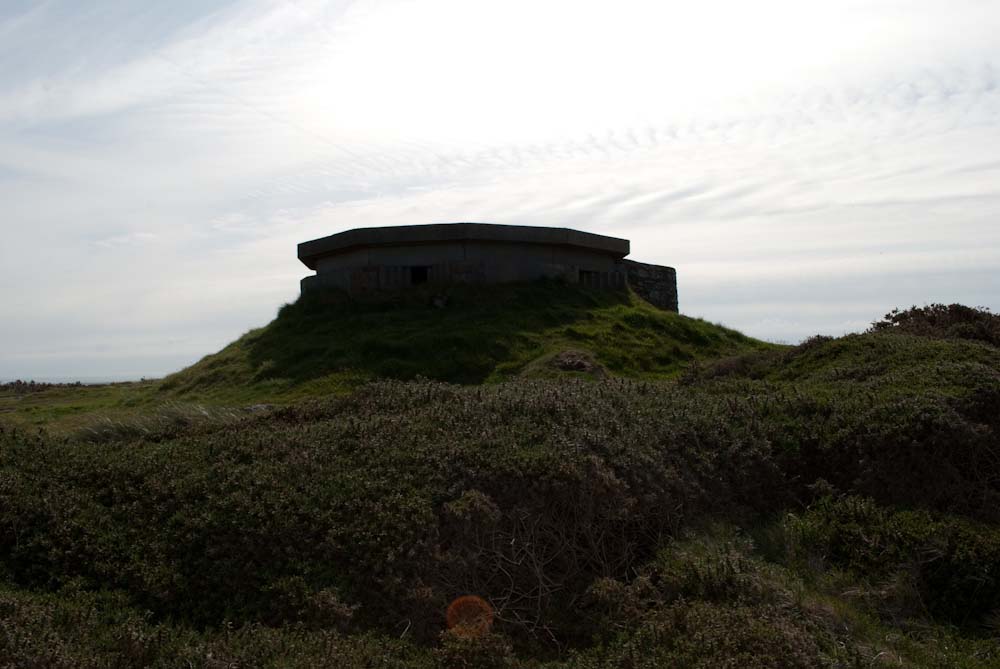

General Site Views

By Chris Corkish.
